Jumpdown Junctions – An innovative solution to prevent stranding and blackflow in drain lines
The Problem
Modern drain lines face stranding and backflow issues due to the ever decreasing flow rates caused by the introduction of low flush WC’s, efficient WELS rated tapware, waterless urinals and other water saving technologies.
The Solution
Branch lines coming into the main drain must be installed with a minimum incline of 15°.

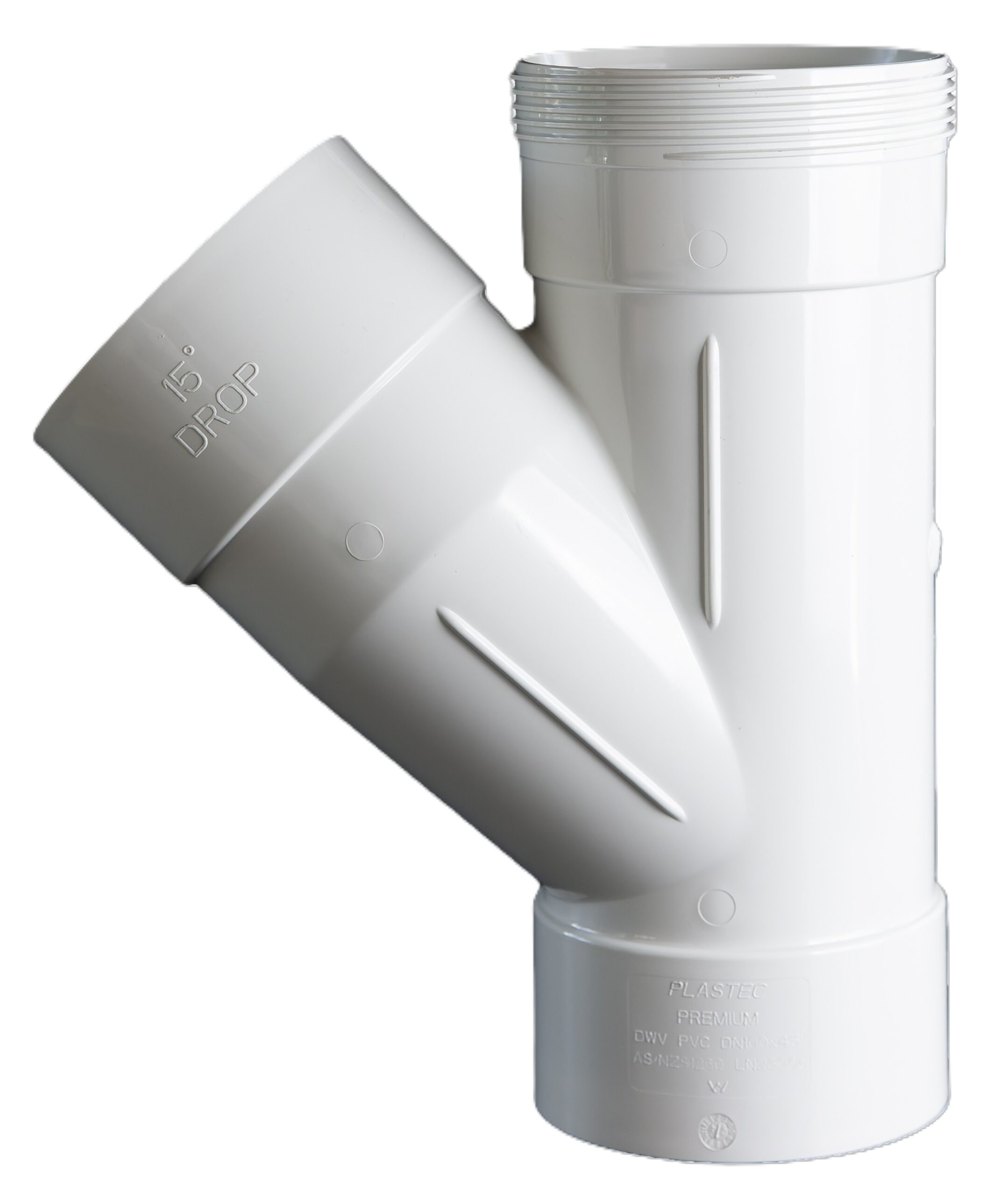

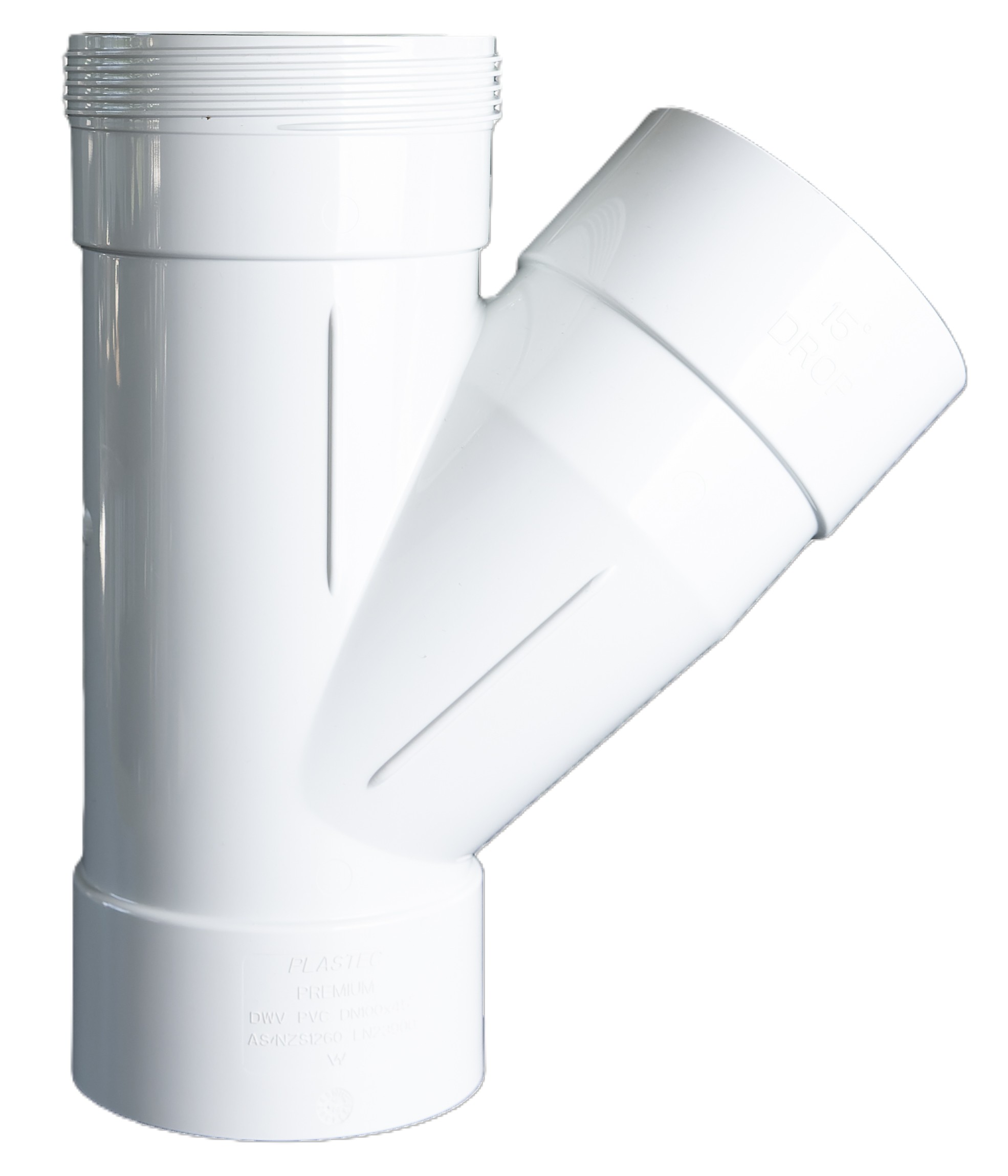

- Jump Down (JD) Junction
- Certified to AS/NZS1260.
- Install as per AS/NZS3500.
- 45° & 15° in one fitting
- Premium wall thickness
- Visual indicators / heavy wall thickness
- 15° fall in compliance with AS/NZS3500.2 Clause 4.9.1.2
- Australian Design, Patented and Design Registered in Australia and New Zealand
- Jump Down aka Drop, step, jump up or backflow prevention junction
More info: https://www.plastec.com.au/plas-product/c-dwv-p/c-jnctns-ff/ab-45/
